High Teck Spray Guns
HVLP Performance Series Gravity Feed Spray Guns
High Teck Performance spray guns provide easy-to-use, long-lasting tools for a variety of automotive, industrial, and marine coating applications. Anodized aluminum bodies and stainless steel hardware offer corrosion resistance and allow for the use of waterborne coatings. Simple, yet comprehensive instructions make the task of achieving professional results easy with fully adjustable, precision-machined controls for fluid, air and fan pattern.
2 GUN HVLP KIT 1.4MM & 1.8MM/REGULATOR
• HVLP technology increases transfer efficiency & minimizes overspray
• Stainless steel needle & fluid tips allow for use of water-based coatings
• One-piece, ergonomic aluminum bodies with anodized finish offer corrosion protection
• Adjustable fluid, fan pattern and air controls for precise application & smooth, high quality finishes
3 GUN HVLP PAINT AND TOUCH UP GUN SET
• One year OTC warranty
• Stainless steel needle and fluid tip allow for the use of water-based coatings
• One-piece, ergonomic aluminum body with anodized finish offering corrosion protection
• Adjustable fluid, fan pattern and air controls for precise application and smooth, high quality finishes

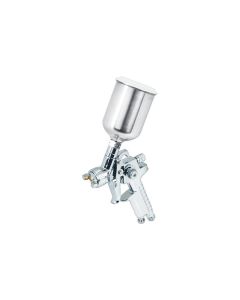

High Teck™ T500 Performance Series HVLP Spray Gun, 1 mm Nozzle, Aluminum

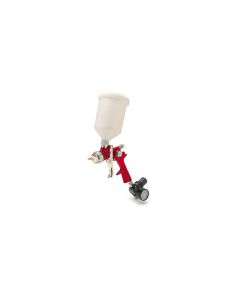

High Teck™ T501 Performance Series HVLP Spray Gun, 1.4 mm Nozzle, Aluminum

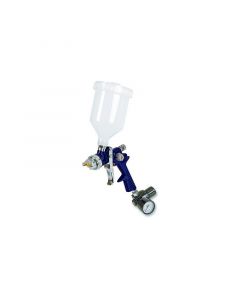

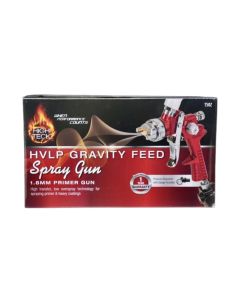

High Teck™ T502 Performance Series HVLP Spray Gun, 1.8 mm Nozzle, Aluminum

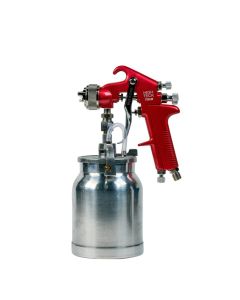

High Teck™ T510 Suction Feed Spray Gun, 1.8 mm Nozzle, Stainless Steel, Ergonomic Handle
| Part # | Description | UOM | QTY/CS | Shop | Jobber | 3+ |
| HIT.T520 | 2 GUN HVLP KIT 1.4MM & 1.8MM / REGULATOR | EA | 1 | $135.34 | $87.93 | $83.53 |
| HIT.T530 | 3 GUN HVLP PAINT AND TOUCH UP GUN SET | EA | 1 | $221.50 | $143.72 | $104.63 |
| HIT.T500 | PERFORMANCE HVLP SPRAY GUN 1.0MM | EA | 1 | $59.69 | $38.76 | $63.82 |
| HIT.T501 | PERFORMANCE HVLP SPRAY GUN 1.4MM | EA | 1 | $87.06 | $56.63 | $45.76 |
| HIT.T502 | PERFORMANCE HVLP SPRAY GUN 1.8MM | EA | 1 | $87.06 | $56.63 | $45.30 |
| HIT.T510 | PERFORMANCE SUCTION FEED SPRAY GUN 1.8MM | EA | 1 | $82.45 | $53.59 | $42.87 |

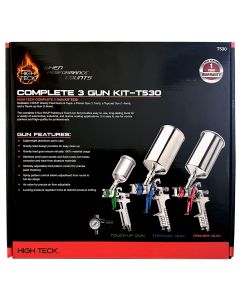

3-Gun HVLP Paint & Touch Up Kit
The High Teck™ Complete 3-Gun HVLP paint & touch up set includes three Performance Series spray guns with aluminum cups: 1.0mm touch up, 1.4mm topcoat and 1.7mm primer. This set also includes a locking pressure regulator, fluid filter, gun cleaning kit and service tools.
Features & Benefits
-
Stainless steel needle & fluid tip allow for the use of water-based coatings
-
One year OTC warranty
-
One-piece, ergonomic aluminum body with an anodized finish offers corrosion protection
-
Adjustable fluid, fan pattern and air controls for precise application & smooth, high quality finishes
| Nozzle Size | Cup Type | Avg Air Consumption | Air Inlet Thread |
|
1.0mm
1.4mm
1.7mm
|
Aluminum | 7-9 CFM | 1/4" NPS |
Suction Feed Spray Gun 1.8MM
The High Teck T510 is a multi-purpose spray gun that features a stainless steel needle and precision air cap for reliability and superior paint atomization. An ergonomic pistol grip and trigger design reduce fatigue while handling a multitude of coatings & paints.
Features & Benefits
-
Stainless steel needle & fluid tip
-
No gaskets: manufactured with precision CNC machined parts
-
All-purpose, easy-to-clean paint spray gun
-
Fully adjustable, wide fan pattern control
| Dimensions | Nozzle Size | Weight | Cup | Operating Pressure |
| 6.5" x 12" | 1.8mm | 3.0 lbs | 1 quart, Aluminum | 50-60 psi |
Suction Feed Spray Gun 1.8MM
The High Teck T510 is a multi-purpose spray gun that features a stainless steel needle and precision air cap for reliability and superior paint atomization. An ergonomic pistol grip and trigger design reduce fatigue while handling a multitude of coatings & paints.
Features & Benefits
-
All-purpose, easy-to-clean paint spray gun
-
Fully adjustable, wide fan pattern control
-
Stainless steel needle & fluid tip
-
No gaskets: manufactured with precision CNC machined parts
| Part # | Dimensions | Nozzle Size | Weight | Cup | Operating Pressure |
| T510 | 6.5" x 12" | 1.8mm | 3.0 lbs | 1 quart, Aluminum | 50-60 psi |
